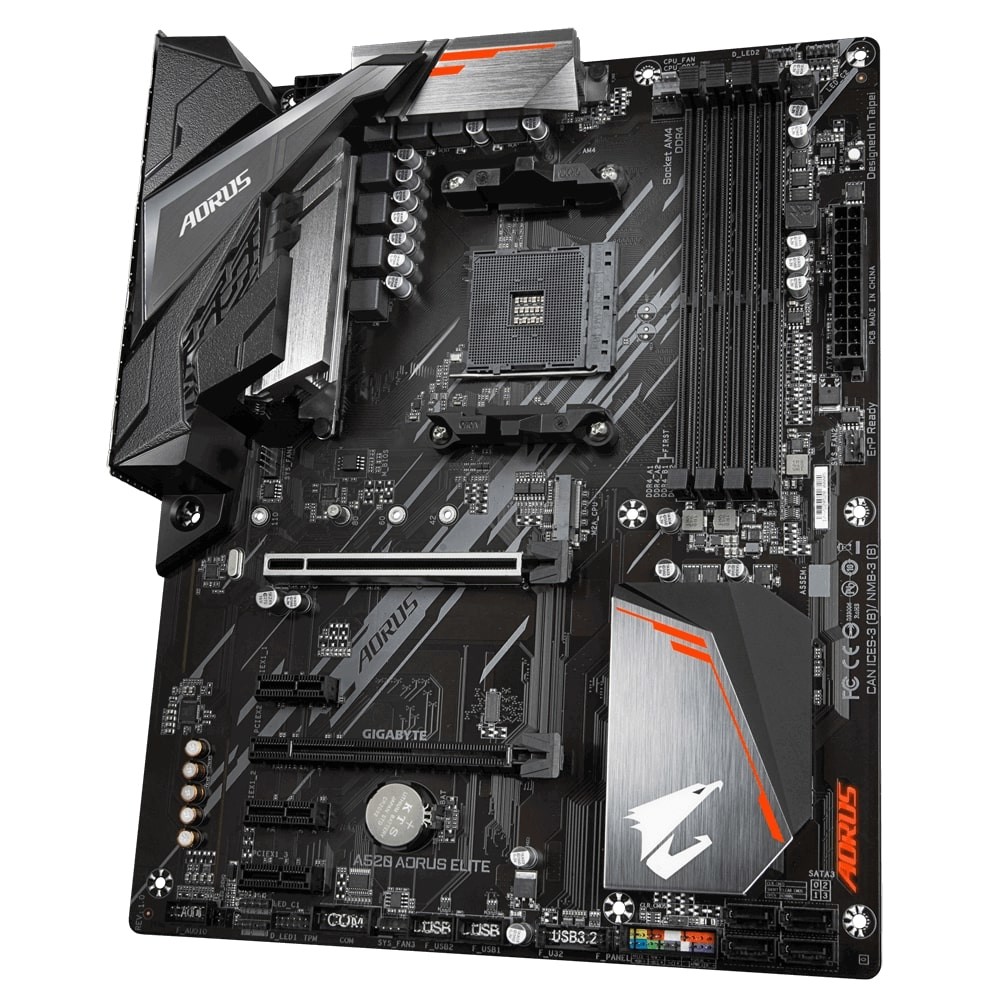

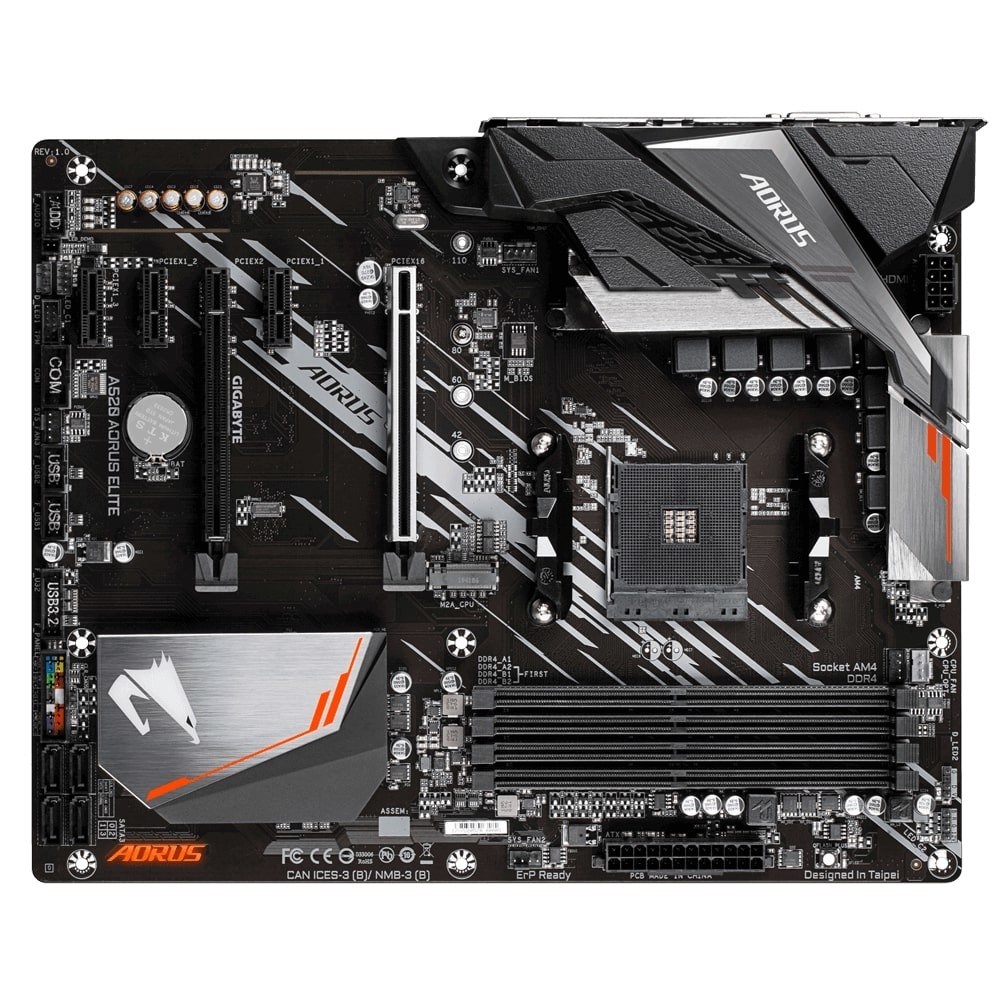

GIGABYTE MB Sc AM4 A520 AORUS ELITE, AMD A520, 4xDDR4, HDMI, DVI

Chipset:
AMD A520


Rozměrový formát:
ATX Form Factor (305 mm x 244 mm)

Podpora pro procesory:
3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors

Patice procesoru:
AM4


Pozice na paměti:
4x DDR4 DIMM

Podpora pro paměti:


3rd Gen AMD Ryzen™ Processors:

4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:

4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

Max.velikost operační paměti:
128 GB

Podpora pro paměti typu:
DDR4
*Dual channel memory architecture
*Podpora ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
*Podpora non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
*Podpora Extreme Memory Profile (XMP) memory modules


Grafické výstupy:

*Integrovaná v 3. generaci AMD Ryzen™ s Radeon™ grafickým procesorem (na základě cpu)


Zvuková karta:

*Realtek® ALC1200 codec


Síťová karta:

*Realtek® GbE LAN chip (1000 Mbit/100 Mbit)


Rozšiřující sloty:

*1x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
*1x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
*3x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2, PCIEX1_3)


RAID řadič:
0, 1, 10


SATA:

*4x SATA 6Gb/s ports


M.2:

*1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)


USB:

*
zadní USB porty ( celkem 8 )

*1x USB 3.2 Gen 2 Type-A port (red)
*3x USB 3.2 Gen 1 ports
*4x USB 2.0/1.1 ports
*
přední USB porty ( celkem 6 )

*2x USB 3.2 Gen 1 ports
*4x USB 2.0/1.1 ports


Interní porty:

*1x 24-pin ATX main power connector
*1x 8-pin ATX 12V power connector
*1x CPU fan header
*1x water cooling CPU fan header
*3x system fan headers
*2x addressable LED strip headers
*2x RGB LED strip headers
*1x M.2 Socket 3 connector
*4x SATA 6Gb/s connectors
*1x front panel header
*1x front panel audio header
*1x USB 3.2 Gen 1 header
*2x USB 2.0/1.1 headers
*1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
*1x serial port header
*1x Clear CMOS jumper
*1x Q-Flash Plus button

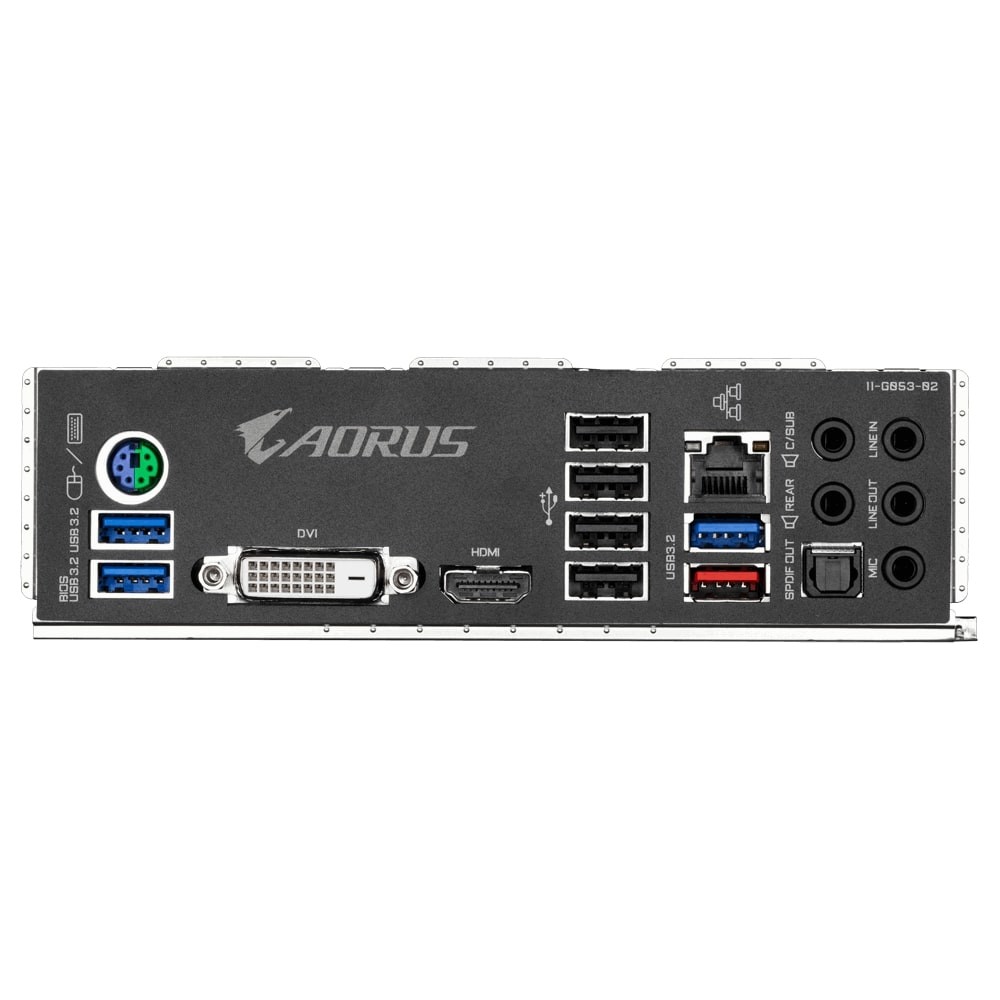

Externí porty:

*1x PS/2 keyboard/mouse port
*1x DVI-D port
*1x HDMI port
*1x USB 3.2 Gen 2 Type-A port (red)
*3x USB 3.2 Gen 1 ports
*4x USB 2.0/1.1 ports
*1x RJ-45 port
*1x optical S/PDIF Out connector
*5x audio jacks


BIOS:
128 Mbit flash, AMI UEFI BIOS


Stránka výrobce:
https://www.gigabyte.com/Motherboard/A520-AORUS-ELITE-rev-10
